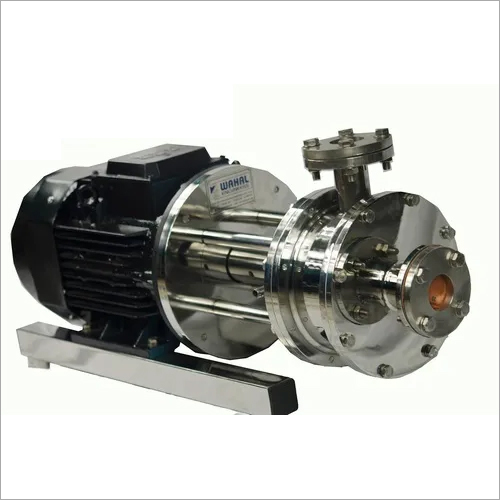

Inline two stage homogeniser

Wahal manufactures a range of homogenizers specially design to work on the principle of shear force. Shear force is the force acting due to the shearing produced in between a rotating and a stationary parts. The same principle in being used wherein the homogenizer comprises of a rotatory part called the rotor and a stationary parts called the Stator. There are a various combinations of precision engineered rotor-stator assembly specific to the application of use. And one can have a range of the rotor-stator assembly to perform various homogenization applications.

The homogenizers can be sub-categorized into the following:

• Continuous Homogenizers wiz single, two and four stage inline homogenizer
• Batch Homogenizers wiz intank and bottom mounted batch homogenizers

Applications: Blending, Homogenization, Emulsification, Hydration, Dissolving, Liquid Powder Mixing, Particle size reduction

Attach Homogenizer Catalog

2.      2.1.Single Stage Inline Homogenizer:

Single Stage Inline homogenizer comprises of a single set of a rotor stator assembly having various configurations of stator heads based upon the application. The single stage homogenizers have the following specs:


2.2.Two Stage Inline Homogenizer:

Two Stage Inline homogenizer comprises of two sets of a rotor stator assembly having various configurations of rotor-stator heads based upon the application. The two stage homogenizers have the following specs:

2.3.Four Stage Inline Homogenizer:

Four Stage Inline homogenizer comprises of four sets of a rotor stator assembly having various configurations of rotor-stator heads based upon the application. The four stage homogenizers have the following specs:

Binary entrance for merging partial flows
